Package include:

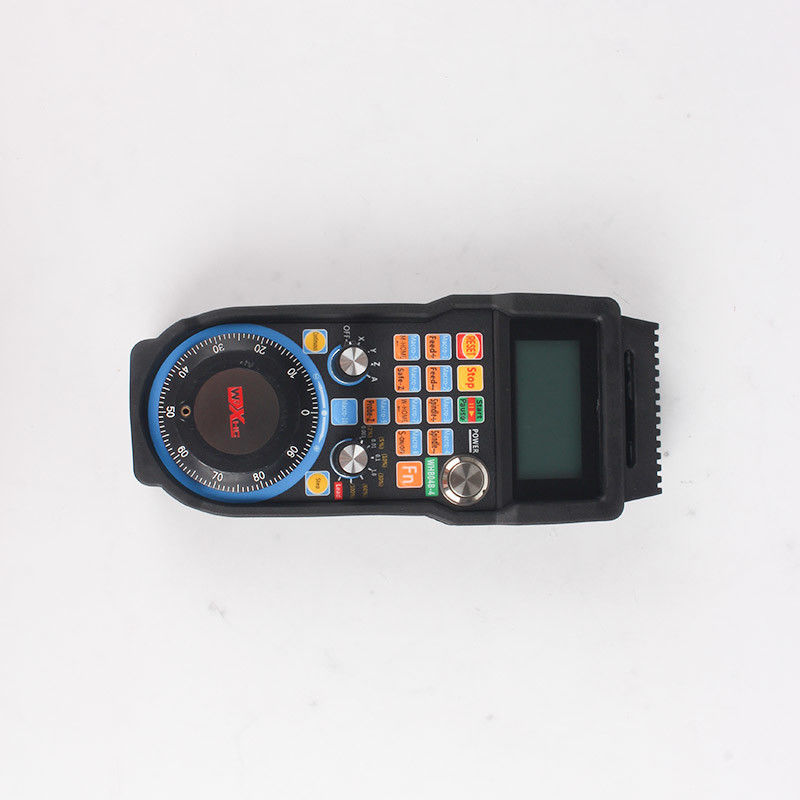

1 x Wireless Mach3 Handwheel MPG Pendant WHB04B-4 ( 4 Axis or 6 Axis follow your choice )
1 x Wireless USB Receiver
1 x English instruction by email
Description:
1) Adopt frequency hopping transmission, strong anti-interference ability. Using 433MHZ, ISM wireless FR transmission technology,
transmit power 10DB, receive sensitivity -98DB.
2) With 64 frequency hopping channels, each channel interval 1MHZ.
3) Intelligent wireless technology, automatic frequency hopping, automatic power saving, automatic to learn ID code.
4) Frequency hopping transmission technology, the same room, can support 64 sets of equipment at the same time, do not affect each other.
5) 100PPR manual pulse generator support 10 macro function button.
6) LCD display:Display Y Z A X axis of the mechanical coordinates and workpiece coordinates. Show the spindle speed, the value of the feed rate.
Dot matrix LCD with backlight. Axis selection, power band switch control.
7) Axis select band switch to achieve the electronic hand wheel off and the corresponding Y Z A X each axis function of the choice of control.
The choice of the step distance value is realized by selecting the switching value band, which is simple and convenient.
8) The series of remote control, providing DLL library files for customers to carry out the 2 development,
suitable for the customer's own a variety of numerical control system. The series of remote control, based on the WINDOWS system.
Application:
For Windows: All Mach3 CNC
Explanation:
1. Key success indication: when you press the button, the receives the key value, the indicator flasher about, indicating successful key operation.
2. Speed Indicator: when the band switch to select 1X,10X,100X,1000X,the LCD display value:0.001,0.01,0.1,MPG.
3. Axis selected location: Axis selection switch position, LCD display axis selected. X:X workpiece coordinate axis,1X:X axis mechanical coordinate.
Key feature:
Features:
- Adopt frequency hopping transmission, strong anti-interference ability
- Using 433MHZ, ISM wireless FR transmission technology, transmit power 10DB, receive sensitivity -98DB.
- With 64 frequency hopping channels, each channel interval 1MHZ.
- Intelligent wireless technology, automatic frequency hopping, automatic power saving, automatic to learn ID code.
- Frequency hopping transmission technology, the same room, can support 64 sets of equipment at the same time, do not affect each other
- LCD display
- Display Y Z A X axis of the mechanical coordinates and workpiece coordinates.
- Show the spindle speed, the value of the feed rate.
- Dot matrix LCD with backlight
- Axis selection, power band switch control
- Axis select band switch to achieve the electronic hand wheel off and the corresponding Y Z A X each axis function of the choice of control
- The choice of the step distance value is realized by selecting the switching value band, which is simple and convenient.
