4 Axis Cnc Controller Kit USB CNC Driver Board USB6560T4V3

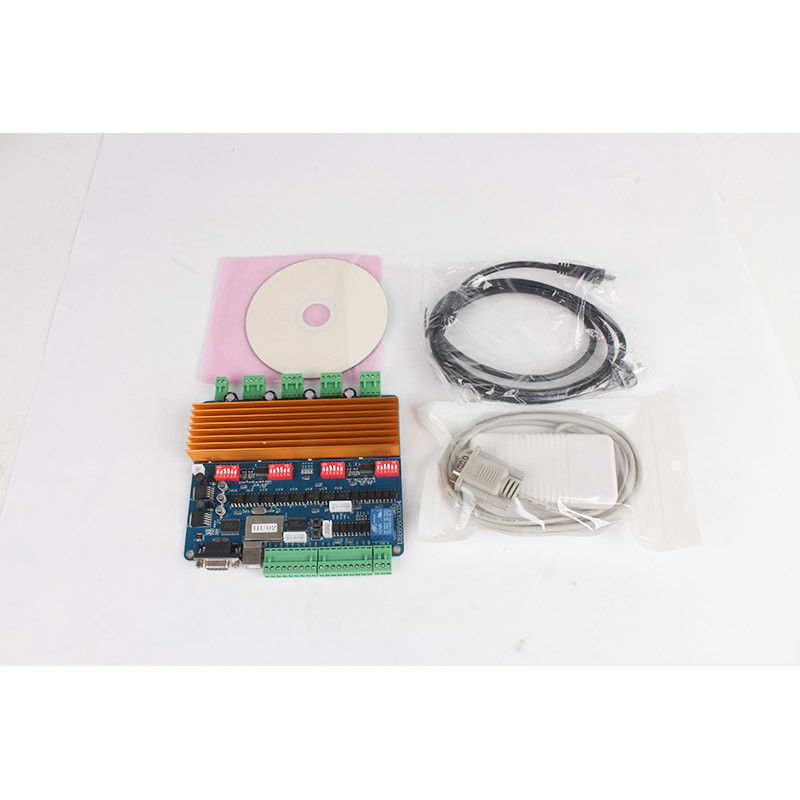

Package include:

1 x 4 axis USB cnc controller board

1 x USB cable

1 x fan

CD include with English user manual and software and register code

4 axis TB6560 cnc controller USB port

Feature:

1. It is 4 axis and connect with computer,power supply,and stepper motor will be a compelet cnc electric controller kit.

2. 4 decay mode and fit for small than 3A 2 phase stepper motor.

3. It can connect 8-way limit switch(each axis with up and down limit),this is more advantage than mach3.

4. It can connect with manual control which could be with off-line work too,it is convenience to adjust the coordinate when tool setting.

5. 4 current setting:0.75/1.5/2.25/3A.

6. Extend 3-way relay port which can control as spindle stop-start,water-cooling,and mist spray switch.

7. Automatic current down,it will be 25% of full current when stepper motor stopped to protect the motor and IC chip.

8. With 12VDC power supply and for customer connect with 12VDC application or with fan.

9. The software is USBCNC,not mach3,pls note this.

New version USB6560T4V3 compare with USB6560T4V2 different:

1. PAUSE & RESET port are set.

2. A new Shield is set for the main control IC,it make the system more Stable.

3. Manual control speed can be set by a Rheostat.

4. The circle is Optimized,
