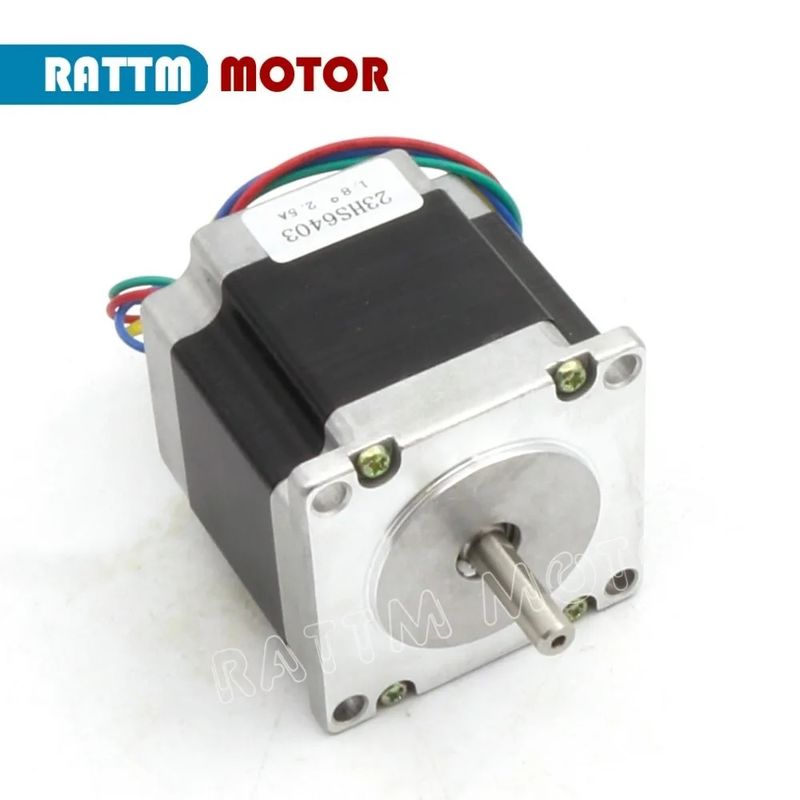

Nema23 Stepper Motor 56mm 165 Oz-In 110Ncm 2.5A 23HS6403
  • Nema23 Stepper Motor 56mm 165 Oz-In 110Ncm 2.5A 23HS6403
  • Nema23 Stepper Motor 56mm 165 Oz-In 110Ncm 2.5A 23HS6403
  • Nema23 Stepper Motor 56mm 165 Oz-In 110Ncm 2.5A 23HS6403
  • Nema23 Stepper Motor 56mm 165 Oz-In 110Ncm 2.5A 23HS6403
  • Nema23 Stepper Motor 56mm 165 Oz-In 110Ncm 2.5A 23HS6403
Nema23 Stepper Motor 56mm 165 Oz-In 110Ncm 2.5A 23HS6403

Nema23 Stepper Motor 56mm 165 Oz-In 110Ncm 2.5A 23HS6403

Place of Origin China
Brand Name Rattm Motor
Certification CE CCC
Model Number 23HS6403
Product Details
Color:
Black
Number Of Leads:
4
Rated Current:
2.5A
Ambient Temperature:
-20 To 50 Degrees Celsius
Body:
57*56mm
Shaft Diameter:
6.35mm
Step Angel:
1.8°
Highlight:

Nema23 Stepper Motor 56mm

,

Nema23 Stepper Motor 23HS6403

,

110Ncm Nema23 Stepper Motor

Payment & Shipping Terms
Minimum Order Quantity
1piece
Price
$11.4-12.8
Packaging Details
Independent anti-collision foam+outer box packaging for each product
Delivery Time
2-7 work days
Payment Terms
T/T, Western Union,Paypal
Supply Ability
5000
Product Description

Stepper motor Nema23 56mm 165 Oz-in/110Ncm/ 2.5A CNC stepper motor23HS6403





Good News: We have warehouse in some countries, check as bellows

Oversea warehouse-Fast Shipping-Free VAT Tax
Warehouse location Shipping Carrier Delivery Countries Delivery Time Advandge
Germany&Czech Republic DHL/GLS EU Countries 3-12 Business days

1. Fast Delivery

2. No VAT Tax
United States UPS/USPS United States only 3-12 Business days

1. Fast Delivery

2. No VAT Tax




  • Stepper motor's red wire connect to driver's A+ port

  • Stepper motor's green wire connect to driver's A- port

  • Stepper motor's yellow wire connect to driver's B+ port

  • Stepper motor's blue wire connect to driver's B- port




Nema23 Stepper Motor 56mm 165 Oz-In 110Ncm 2.5A 23HS6403 0



General Specification:

Step angle accuracy:+ - 5%(full step,not load)

Resistance accuracy: + - 10%

Inductance accuracy:+ - 20%

Temperature rise: 80deg Max(rated current,2 phase on)

Ambient temperature ----------—20deg ---- +50deg

Insulation resistance:100ohm Min,500VDC

Insultion Strength--------500VAC for one minute

Datasheet(23HS6403,6.35mm diameter shaft,165oz-in or 11kg.cm holding torque)

Nema23 Stepper Motor 56mm 165 Oz-In 110Ncm 2.5A 23HS6403 1Nema23 Stepper Motor 56mm 165 Oz-In 110Ncm 2.5A 23HS6403 2Nema23 Stepper Motor 56mm 165 Oz-In 110Ncm 2.5A 23HS6403 3



Drawing:

Nema23 Stepper Motor 56mm 165 Oz-In 110Ncm 2.5A 23HS6403 4
