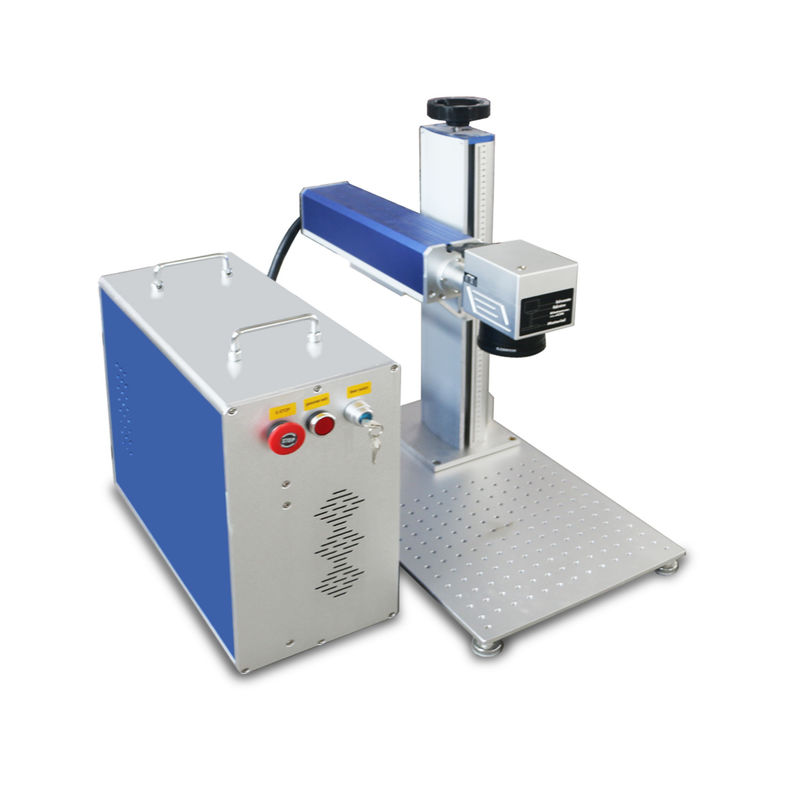

100W JPT MOPA Fiber Laser Marking Machine 70W 60W 50W 30W 20W Raycus Engraving Cutter Jewelry Metal Engraver
Package include:
1 Set Fiber Laser Marking Machine(Split Type, laser power and brand is optional)
1 Set Rotary Axis(Optional)
2 Piece Filed lens(150*150mm & 70*70mm)
1 Pcs U Disk (USB)
1 Pcs Data Line
1 Software Ezcad2
1 Set Foot Switch
1 Set Assembly Tools
4 pcs Fixed Sheet Metal
1 Set Power Cable
10 Pcs Metal Card
Note: The marking area is optional : 50x50/70x70/110x110/150x150/200x200/220x220/300x300mm,
we ship 150x150mm lens as default, buyer can also choose other size after placing the order,)
Technical Parameter
| Model |
|
| Laser power |
20W/30W/50W/60W Raycus /MAX/JPT (optional) |
| |
|
| Field Mirror(Work Area) |
150*150mm( 50*50mm / 70*70mm / 110*110mm / 150*150mm / 175*175mm / 200*200mm / 300*300mm
Optional. Support extra purchase.) |
| Cooling Mode |
Air Cooling |
| Laser Wavelength |
RAYCUS/MAX is 10.64 um
JPT is 1064 um
|
| Frequency of pulse |
RAYCUS/MAX is 20-100 KHz
JPT LP is 1-600KHZ
JPT M7 is 1-4000KHZ
|
| Marking Depth |
≤0.3 mm |
| Marking Speed |
≤4000 mm/s(RC1001) (it can change to SG7110 , 8000mm/s ,price is higher US$150)
|
| Marking Lines |
1-10 lines |
| Minimum Line Width |
0.01 mm |
| Minimum Character |
0.15 mm |
| Repeatability Accuracy |
±0.002 mm |
| Resolution Ratio |
0.1 mm |
| Marking Content |
Text, pattern, date, bar code, etc |
| Operation System |
Microsoft Windows XP or Windows 2000,WIN 7, WIN8, WIN 10 |
| Control Software |
EZCAD ENGLISH Control Software |
| Graphic Format Supported |
BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc. |
| Unit Power |
≤0.9 KW |
| Operation Temperature |
5°C-40°C |
| Relative Moisture |
≤ 90%, no fog |
| Dimensions(L*W*H) |
95 x 78 x 55 cm |
| Power supply requirements |
220 V or 110V |
| Weight |
40KG |
| Warranty |
24 months |
The motherboard supports win10 and supports 32-bit 64-bit.
1:Fully build the platform professional fiber laser marking machine shop, please customers to patronize, do not just look at the price. To look at the quality of the machine, use high-quality machine parts to give customers the best price and quality service! Provide S/N coding for our machines, machine lifetime service,
2: Machine configuration:
A;Fiber Laser brand: Raycus/MAX/JPT
B; SINO-GALVO RC1001 galvanometer with Red dotsassistant focusing align.
C; Taiwan Meanwell (MW) power supply,
D; Motherboard with Rotary axis function, free built-in drive & rotary axis port.
E:Rotary axis (Optional)
3: In addition to these main accessories, we can gain an in-depth understanding of the machine configuration of the accessories and technical debugging of the main quality of the machine. It only provides you with a machine that runs stably and has a low failure rate. Machine accessories are related to the long life of the machine. In the short term, it is impossible to compare the stability and failure rate of the machine.
