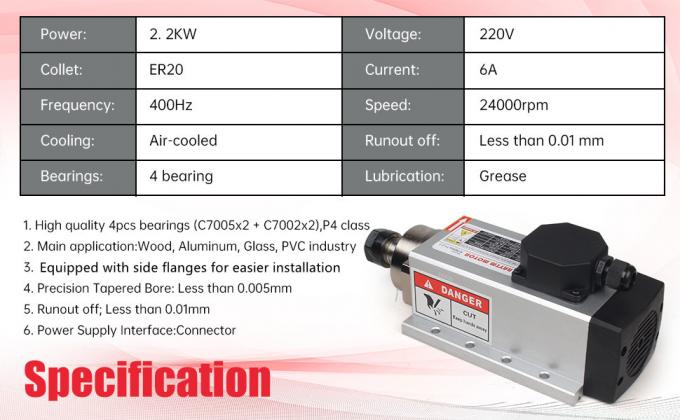

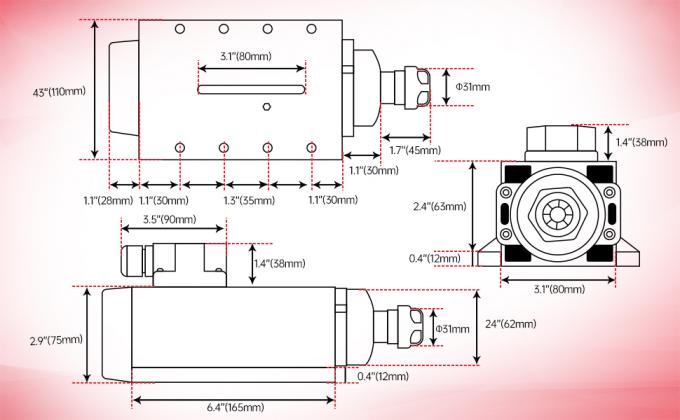

Specification:

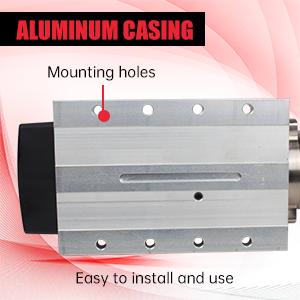

• Material: Stainless Steel
• Power: 2.2KW
• Voltage: 220V/AC
• Current: 6A
• Frequency: 400Hz
• Speed: 24000rpm

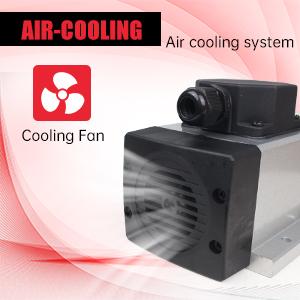

• Cooling: Air-Cooled
• Runout off: Less than 0.01mm
• Precision Tapered Bore: Less than 0.005mm
• Bearing Lubrication: Grease
• Collet Size: ER20
• Bearings: 4pcs bearing,P4 class

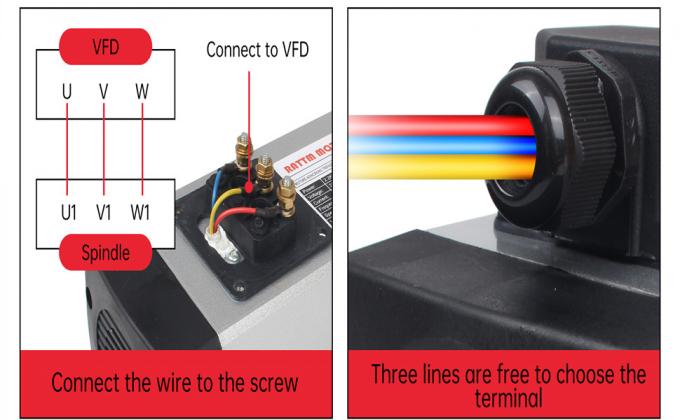

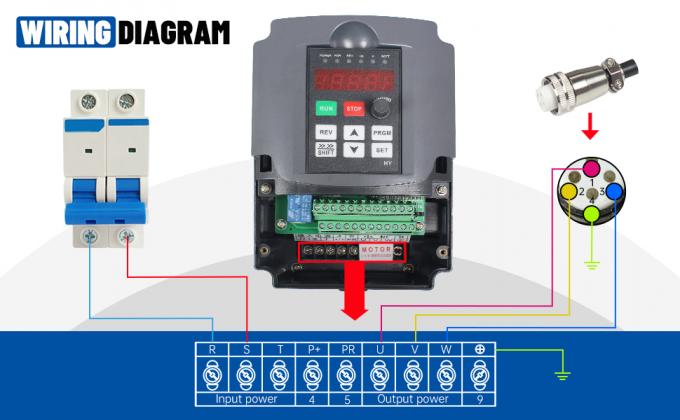

Wirings:

• spindle’s terminal"U1"connect inverter’s"U";
• spindle’s terminal"V1"connect inverter’s"V";
• spindle’s terminal "W1" connect inverter’s "W";
• the inverter’s"R","S", "T" any "2" terminal connection "220VAC"

Main application:

Engraved on wood, Aluminum, Glass, soft metal,PVC industry,also suitable for non-metallic engraving,mainly used for cnc router engraving milling cutting machine

Wiring:

Spindle's pin 1=U

Spindle's pin 2=V

Spindle's pin 3=W

Spindle's pin 4=Ground

Pls connect the 110V AC power supply input wires to the R & T terminals.

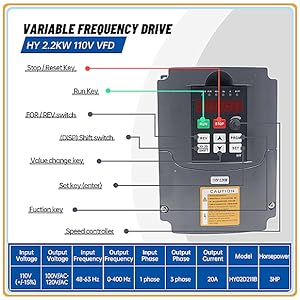

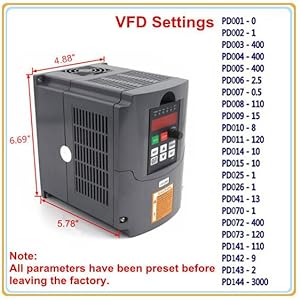

Definition of the VFD buttons

• UP: Progressively increase data or function codes.
• DOWN: Progressively decrease data or function codes.
• SET: Enter menus step-by-step, save setting parameters.
• PRGM: Exit current(or present) state, switch among each states, mainly used to switch monitoring state, exit to previous menu.
• FWD/REV: 1, Press momentary button to start,release to stop; 2 Switch the rotation direction
• SHIFT: Switch monitoring parameters at monitoring state, at secondary menu, move data box to process editing position.
• Kindly Note: If you want to show RPM in the display,please press 'SHIFT' key
