Metal Carving 3020 Plus CNC Milling Machine 500W 3 Axis Desktop GRBL

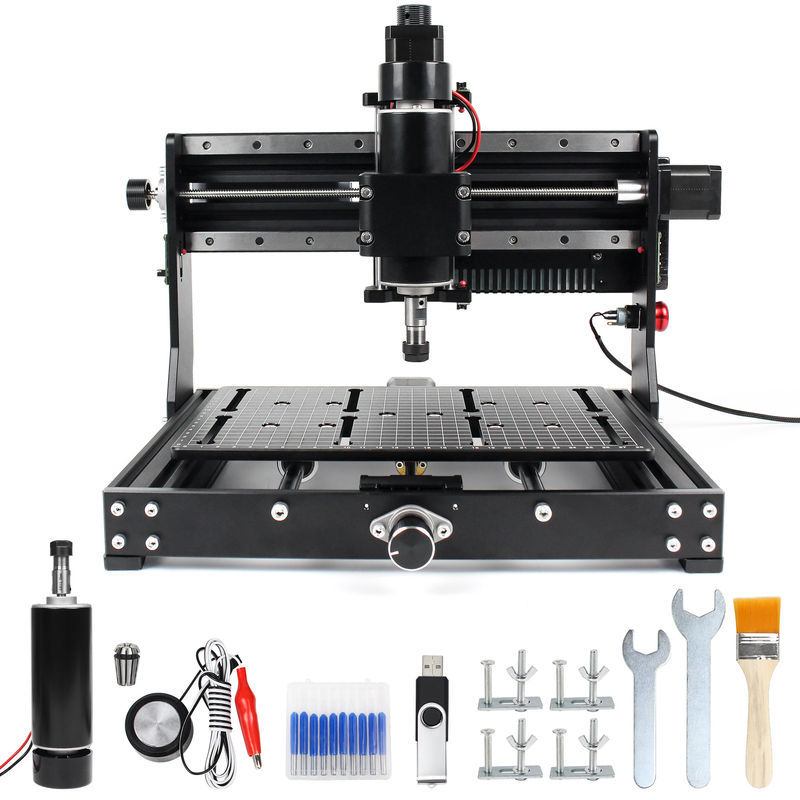

• 1x 3020 Plus cnc router machine
• 1x 500W DC spindle
• 1x Emergency Stop
• 6x limit switches board (XYZ both ends)
• 1x Z Axis Probe tool
• 1 x GRBL control board
• 1 x 10Pcs Engraving bits
• 1 x 2G U disk with GRBL software
• 1 x English User Manual

Parameter:

• Overall size: 46×39×35.4cm (18.1×15.4×13.9inch)
• Engraving area: 300x200x70mm (11.81×7.9×2.9inch)
• Construction: Aluminum
• Control Software: GRBL Control (Candle)
• Spindle Motor: 500w Spindle DC48V, Max.11000rpm/min
• Stepper Motor: Nema17 stepper motor 1.68A 0.55N.m
• Power Supply: Output DC48V 10.4A
• Precision: 0.01mm
• Emergency stop switch: Yes
• Limit switch: XYZ both ends
• Available System: Windows XP/7/8/10 (Not support Mac OS)

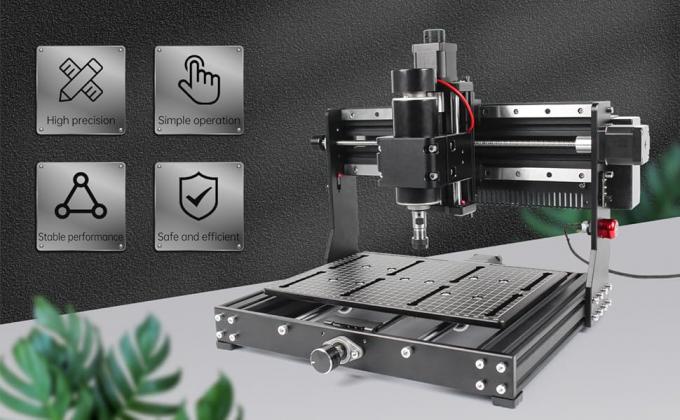

Advantages

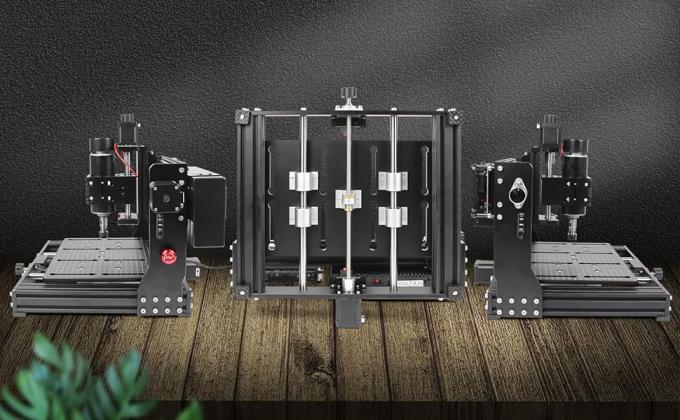

• The body structure of this 3020 Plus CNC engraving machine is made of All-Metal(no plastic parts).
• It is equipped with 12mm thick solid double-steel linear guide rail and bearing slide rail.
• All-metal X-Z axis parts have a vertical stroke of up to 73mm,these designs enable the machine to move faster,with 0.01mm high accuracy and stability.
• The worktable has an accurate scale line,which is convenient to locate and measure the size of the engraving material.
• The machine is equipped with an emergency stop and limit switches.
• The 3020 Plus CNC router is equipped with 500W 48V 11000rpm spindle(with E11 collet),which is more powerful and efficient,and can cut stainless steel,aluminum and other metals.
• Small and practical, no problem for using on your desk.
• Support Win XP, Win 7,Win 8, Win 10 system
• Aluminum alloy material with fine workmanship show excellence in quality.
• Very interesting to install and use, perfect gift for engraving DIY enthusiasts.
• Wide application: can be used for print, hand tools and industrial processing.

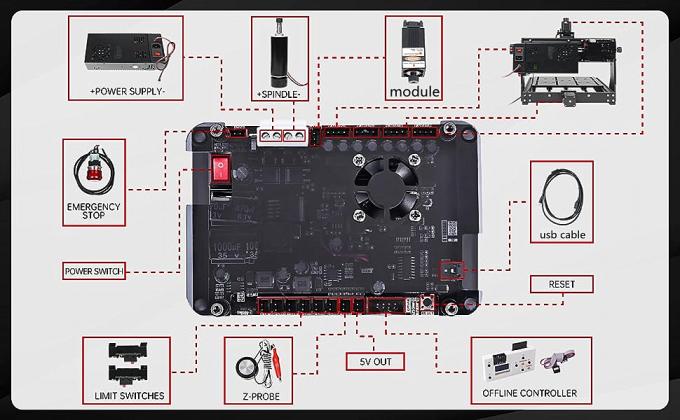

GRBL controller board

• Connection: USB (USB-CH340)
• Support software: GRBL controller(Candle)
• Supporting file:G-code (.nc/.txt/.tape/.gcode)
• Add emergency stop button port,tool probe port and XYZ limit port.
• Power supply:48VDC
• The spindle supports 0-100% adjustable PWM power.
• Support limit switch, tool setting, steering gear, cooling fan and other functions.
• Support PWM / TTL signal control, power 0-100% adjustable.
• Increase the power button switch.
• Support 3-pins module: support 0.5W-40W module.
• Cancel the drive module,integrate the imported stepper motor drive,no need to worry about module damage. And integrated heat dissipation aluminum alloy.
• Add offline recognition function, you can insert offline module and computer at the same time. The machine will automatically recognize whether it is controlled by the computer.
• Add the fan port to force heat dissipation.

Wide application

• Can engrave on Wood, MDF, Carbon fiber, PCB, PVC, Leather, Paper, Acrylic, Ceramic products, Food, Bamboo, Plastic, Plywood, Stainless steel, Brass, Plexiglass, Aluminum and so on.
• This machine can both carve and cut.It can cut 8mm wood products at one time,more easy to create DIY handmade.
